Giá: Liên hệ

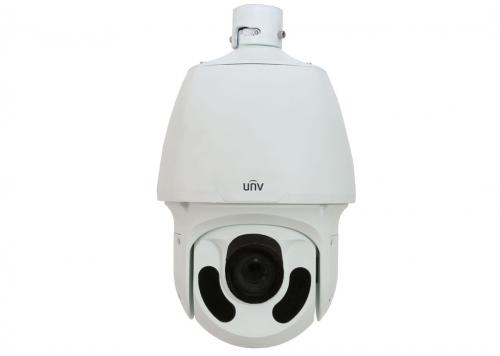

Mã sản phẩm : IPC6222ER-X20P-B

Thương Hiệu : UNV
Bảo hành : 24 Tháng
Đánh giá :

Sản phẩm gợi ý

CAMERA IP DOME 2.8MM 1080P UNV (IPC322SR3-DVSPF28-B)

CAMERA IP MINI BULLET 6MM 960P UNV (IPC2121SR3-PF60)

CAMERA IP 720P DAHUA IPC-HFW 1000SP

Camera IP 720P 3.6mm WATASHI WIP 026A

Camera IP Wifi WATASHI WIOT1021

CAMERA IP DOME 2.8MM 1080P UNV (IPC3232ER-VS)

CAMERA IP DOME 6MM 960P UNV (IPC321SR3-VSPF60)

CAMERA IP DOME 2.8MM 720P UNV (IPC3611ER3-PF28)

CAMERA IP 720P DAHUA IPC-HDW 1000SP

CAMERA IP BULLET 3.6MM 960P UNV (IPC221ER-DF36)

CAMERA IP BULLET 3.6MM 1080P UNV (IPC222ER-F36)

CAMERA IP DOME 2.8MM 960P UNV (IPC321SR3-VSPF28)

Liên hệ

Mã sản phẩm: IPC321SR3-VSPF28

Chi tiết sản phẩm

1/3", 2megapixel, progressive scan, CMOS
Lens 5.2 ~ 104 mm (20x optical zoom)
1920 × 1080
Micro SD, up to 128 GB
ONVIF, API
360° (endless)
Công nghệ hồng ngoại thế hệ thứ ba
IR, khoảng cách IR khoảng 150 m (492 ft)
Cửa sổ kính quang học với độ truyền ánh sáng cao hơn
IR chống phản chiếu tăng truyền hồng ngoại
Kích thước: ông kính ngang 227mm
cao: 359.4mm
24 V AC, 24 V DC, PoE (yêu cầu PSE)

	IPC6222ER-X20-B	IPC6222ER-X20P-B
Camera
Sensor	1/3", 2megapixel, progressive scan, CMOS
Lens	5.2 ~ 104 mm (20x optical zoom)
Angle of View (H)	61.9° (wide) ~ 3.5° (tele)
Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
Minimum Illumination	Colour: 0.03 lux (F1.5, AGC ON) 0 lux with IR
Iris	Auto/Manual; F1.5 ~ F3.0
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
WDR	Digital WDR
Video
Max. Resolution	1920 × 1080
Video Compression	H.265, H.264,MJPEG
Frame Rate	1080P (1920×1080):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.30 fps
Video Streaming	Triple
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Digital Zoom	Supported
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Exception Detection	Audio detection
Intelligent Identification	Face detection
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP 802.1x
Compatible Integration	ONVIF, API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 240°/s
	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 160°/s
	Preset speed: 240°/s
Number of Presets	256
Patrol	Up to 16 patrols, up to 32 presets per patrol *Note:* The total number of patrols and patterns is 16.
Pattern	Up to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface
Audio I/O	Audio cable
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	1/ 1
Network	10M/100M Base-TX Ethernet
General
Power	24 V AC, 24 V DC	24 V AC, 24 V DC, PoE (PSE Required)
	Power consumption: 9 ~ 42W
Dimensions(ØxH)	Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight	5.28 kg (11.6lb)
Working Environment	–40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
