Giá: Liên hệ

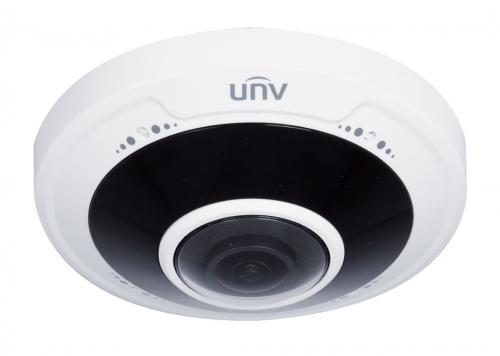

Mã sản phẩm : IPC814SR-DVPF16

Thương Hiệu : UNV
Bảo hành : 24 Tháng
Đánh giá :

Sản phẩm gợi ý

Camera IP Wi-Fi 720P 3.6mm WATASHI WIP058

Liên hệ

Mã sản phẩm: WIP 058

CAMERA IP 3.6MM 720P DAHUA DH-IPC-HD 1000CP-0360B

Liên hệ

Mã sản phẩm: DH-IPC-HD 1000CP-0360B

Camera IP 1080P 3.6mm WATASHI WIP031

Liên hệ

Mã sản phẩm: WIP 031

CAMERA IP DOME 2.8MM 1080P UNV (IPC3612ER3-PF28)

Liên hệ

Mã sản phẩm: IPC3612ER3-PF28

CAMERA IP 720P DAHUA IPC-HFW 1000SP

Liên hệ

Mã sản phẩm: IPC-HFW 1000SP

CAMERA IP BULLET 4MM 1080P UNV (IPC2122SR3-PF40-B)

Liên hệ

Mã sản phẩm: IPC2122SR3-PF40-B

Camera IP 1080P 3.6mm WATASHI WIP 010A

Liên hệ

Mã sản phẩm: WIP 010A

CAMERA IP DOME 4MM 1080P UNV (IPC3612ER3-PF40-B)

Liên hệ

Mã sản phẩm: IPC3612ER3-PF40-B

Camera IP Wi-Fi 720P 3.6mm WATASHI WIP052

Liên hệ

Mã sản phẩm: WIP 052

CAMERA IP BULLET 3.6MM 1080P UNV (IPC222ER-F36)

Liên hệ

Mã sản phẩm: IPC222ER-F36

CAMERA IP DOME 6MM 960P UNV (IPC321SR3-VSPF60)

Liên hệ

Mã sản phẩm: IPC321SR3-VSPF60

CAMERA IP BULLET 3.6MM 1080P UNV (IPC2122SR3-PF36)

Liên hệ

Mã sản phẩm: IPC2122SR3-PF36

Chi tiết sản phẩm

Model	IPC814SR-DVPF16
Camera
Image sensor	1/3", progressive scan, 4.0 megapixel, CMOS
Lens	1.6mm@ F1.6
Angle of View (H)	180°
Shutter	Auto/Manual，shutter time：1/6 s ~1/100000 s
Minimum Illumination	Colour: 0.02 Lux (F1.6, AGC ON) 0 Lux with IR
Day / Night	IR-cut filter for day & night function
Digital noise reduction	2D/3D DNR
S/N	>55dB
IR Range	UP to 10m (33ft)
Defog	Digital Defog
WDR	120dB
Video
Max. Resolution	2592x1520
Compression	Ultra265, H.265, H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream : (2560×1440) : Max.25fps; Sub Stream: (1920×1080) : Max.25fps; Third Stream: D1(720 x 576): Max.25 fps
BLC	Supported
OSD	Up to 8 OSDs
ROI	Up to 8 areas
Privacy Mask	Up to 8 areas
Motion Detection	Up to 4 areas
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 128GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G), API
Live View Display
Mount Type	Support table, wall, and ceiling
Interface
Audio I/O	Audio interface
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
	3 built-in omnidirectional microphone
Alarm I/O	1 / 1
Built-in Mic	Supported
Built-in Speaker	Supported
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Network	1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
General
Power	DC12V±25%,PoE(IEEE 802.3af)
Power	Power consumption: Max. 11 W
Dimensions (Ø x H)	Φ125x 43.7 mm (Φ4.9” x 1.7”)
Weight	0.39kg(0.86lb)
Working Environment	-40°C ~60°C (-40°F ~ 140°F), Humidity :10%~95% RH
Ingress Protection	IP66
Vandal Resistant	IK10
Reset Button	Supported
